Crack Sealing Machine

Product features:

● The product operation safety is improved, the whole process of mechanized operation control is used to avoid burns and fires that often occur in the manual operation of POTS and pans in the past.
● The thermal efficiency is increased by 2 to 3 times, the entire operation time is shortened, and the heating time is shortened from the original 30 to 45 minutes to 15 to 20 minutes, which greatly improves the operation efficiency.
● Baishan sewing machine is small in size, light in weight, easy to move and easy to operate.
● There is no headache of caulking material blocking the pipe.
● There is a standard manual pot for filling seams, which is used as auxiliary equipment for filling seams.
● The solar electronic ignition method is convenient, safe and simple.


Applications:It is used to treat irregular cracks in asphalt pavement and cement pavement joints and cracks on county and township roads, municipal roads, parking lots, toll stations, etc.

Product advantages:
● The new process and patented technology are adopted to improve the quality and reduce the cost.
● By using the tracking type direct filling, through the control valve and the adjustable nozzle, the filling is directly aligned on the crack, which greatly improves the working speed.

Product details:The portable pot is mainly used for filling seams in the narrow environment outside the operating range of the whole machine equipment, convenient and dexterous



Technical Data

Name

Crack tracking type direct filling machine

Model

NKY-55/80LB

Ignition Mode

Solar electronic ignition

Heating Method

LPG gas + heater + high efficiency insulation tank

Heating Control

3 sets (adjustable heater)

Temperature Control

External viewing temperature sensor

Discharge Control

Use an anti-clogging control valve

Number of nozzle

Oval anti-clogging control valve is adopted

Filling Rate

0~20M/min (adjustable)

Materials

Stainless Steel

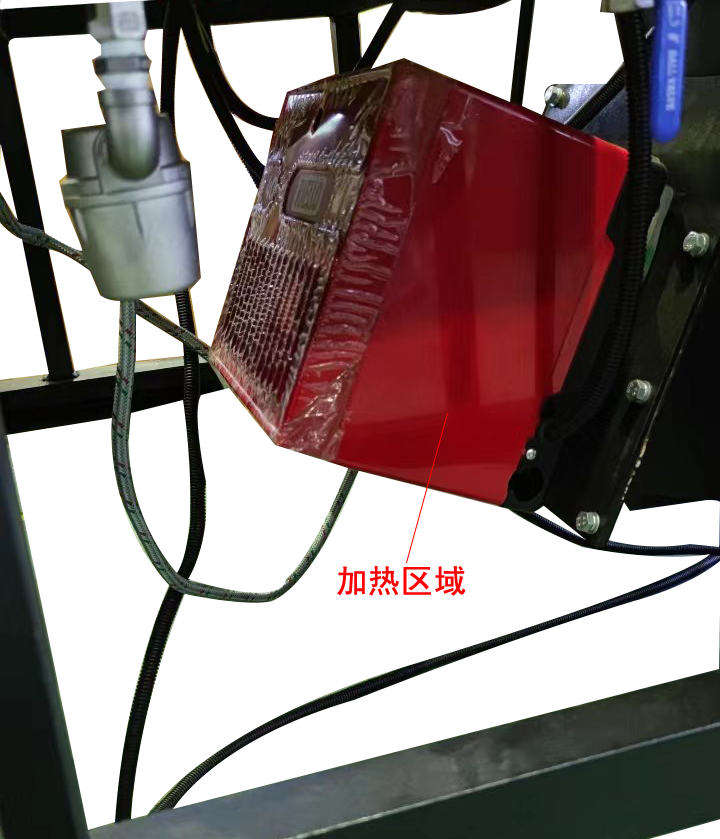

Equipped with small heater

A small heater can be used when there are a few cracks

Volume L*W*H

1200*700*1200

Weight

110kg

Walking Mode

3 wheels (one wheel with brake)
